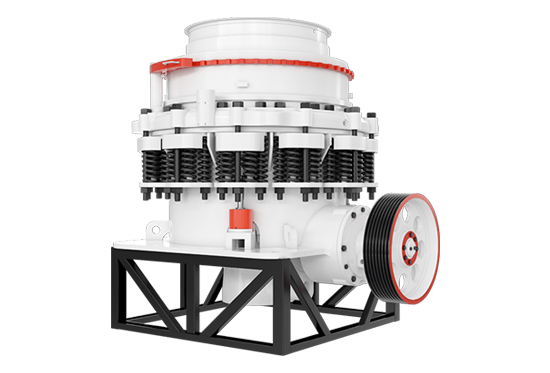

CS Series High-efficiency Spring Cone Crusher concentrates on the specialty of high-frequency, optimization of cavity and reasonable impact. It is based on the conceptions of laminated crushing principle and more crushing and less grinding. It is researched and designed by our company, according to the customers’ requirement. This CS series cone crusher is widely used to crush metalliferous and nonmetalliferous ores, cement, construction and sand. The standard model is suitable for medium crushing, and the medium model is suitable for fine crushing and the short head model is suitable for fine crushing.
1.low operation cost
4.easy maintenance and operation
5.high performance and reliability
6.good product composition granularity
In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the drive, and the moving cone is rotating and swinging under the forced motion of the eccentric shaft. The moving cone is close to the section of the static cone and becomes the crushing chamber. The material is broken by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone is away from the section, it has been crushed to the required size, and the material is falling under its own gravity and discharged from the cone bottom.
|Model||Movable Cone Diameter(mm)||Cavity Type||Feeding Size(mm)||Discharging Opening Size(mm)||Main Shaft Speed(r/min)||Motor Power(kw)||Capacity(t/h)||Overall Dimension(mm)|
|Feeding Size(mm)||Opening Size(mm)|
|2821 × 1880 × 2164|
|CS110||1200||Fine||127||131||9-31||485||110||63-188||2821 × 1974 × 2651|
|CS160||1295||Fine||109||137||13-31||485||160||109-181||2800 × 2342 × 2668|
|CS220||1395||Fine||155||173||25-65||485||220||180-285||3360 × 2650 × 3050|
|CS250||1650||Fine||188||209||16-38||485||250||181-327||3911 × 2870 × 3771|
|CS315||2134||Fine||253||278||19-38||435||315||281-726||4631 × 3251 × 4732|
